32'' self ordering kiosk for McDonald's, Subway, etc.

FOB Reference Price:Get Latest Price
$700.00 - $1,000.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Astouch
Model Number:
A32-SFR01
Type:
TFT
Application:
Indoor
Viewing Angle:
178(H)/178(V)
Pixel Pitch:
0.4845 mm
Color:
Black/White
Contrast Ratio:
4000:1
Brightness:
400 cd/m2
Response Time:
4 ms
Input Voltage:
AC100~240V 50 /60 HZ
Panel Brand:
LG LCD Panel (Optional)
Backlight:
LED
Certificates:
CE/FCC/ROHS
Applications:
Supermarket, Mall center, Commercial buildings
Max Resolution:
1920x1080p
Panel Size:
32 Inch
Supply Ability
Supply Ability:
4000 Unit/Units per Quarter
Packaging & Delivery
Packaging Details
To be packed in antistatic, each wrapped by foam bags, in carton
Port
Shenzhen
Lead Time :
Within 7-10 workdays after payment confirmed
Related Products
Product Description

                                                                                              1920*1080p, Full HD

                                                               present exquisite product image with high resolution.


                                                                                                                10 Points Touch Screen

                                                                                                                support multiplayer interactive

                                                                         support rich applications for business & entertainment

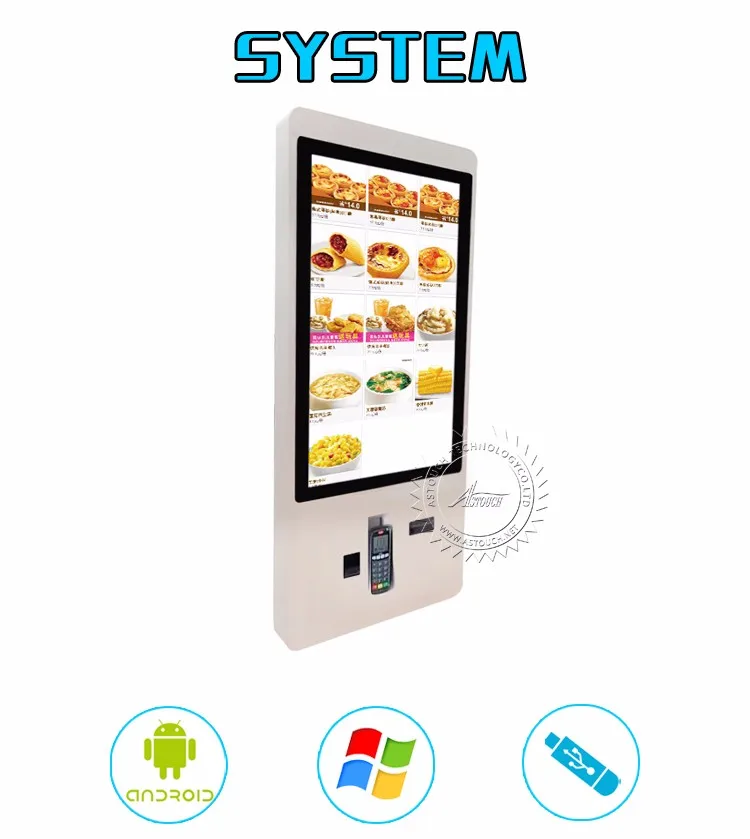

                                                                                                     Android(dual, quad, octa core),

                                                                                             Windows(J1900, i3, i5, i7 CPU),

                                                                              Standalone Version Solutions.

                                                               Android & Windows: support the Wi-Fi/3G/4G module,

                                                            support the Remote Control of multi devices with wire or wireless

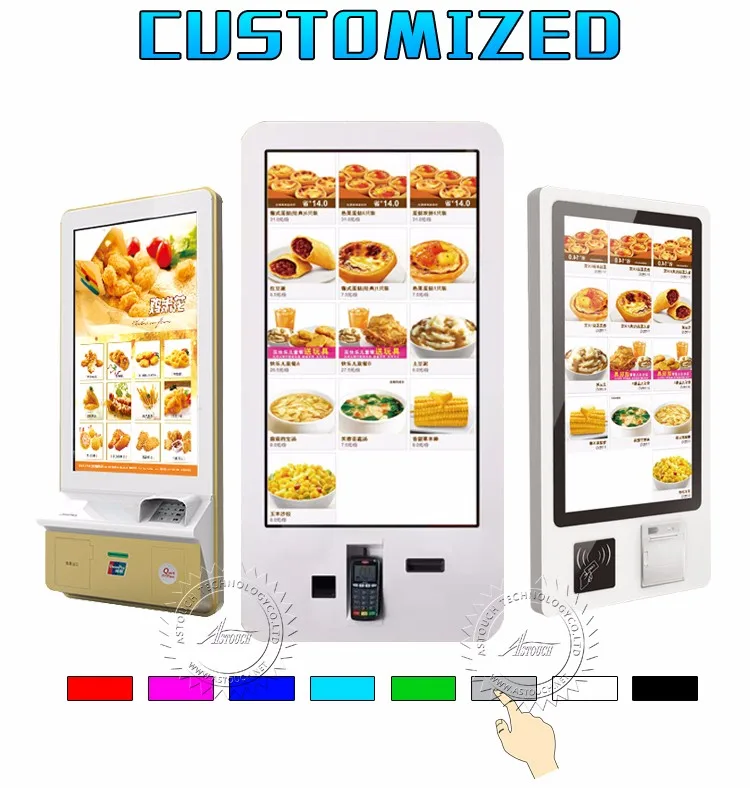

                                                                                                        Various Color Options

                                                  Camera, printer, QR code reader, can be added as required


Car painting technology;
Easy service access through front and back;
Multimedia speakers, internal ventilation system;
Cold-rolled Steel ST12 SPCC with1.5mm thickness.


Applications

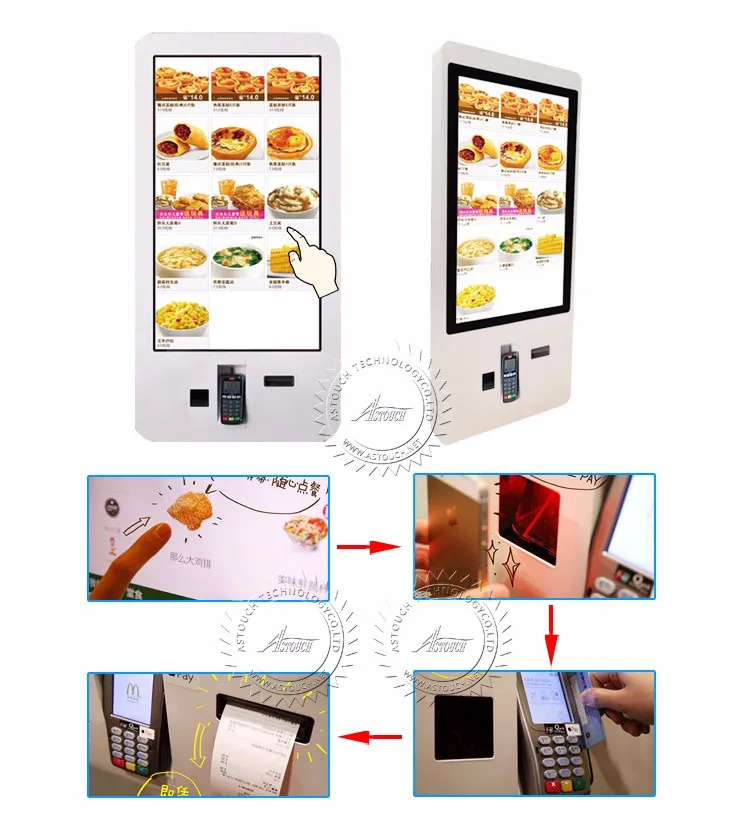

Thfast food ordering self service payment kiosk machine can help customer carry out directly ordering and paying via interactive touch screen, integrated card reader, QR code scanner(Alipay/Wechat), receipt printer, which reduce customers’ waiting time in a queue at the checkout counter,

The self ordering kiosk can also help Quick Service Restaurant encourage customers impulse ordering and upsell all the time with beautiful presentation and attractive photos and graphics.

Specification
32'' Touch Self Ordering Kiosk in fast food restaurant

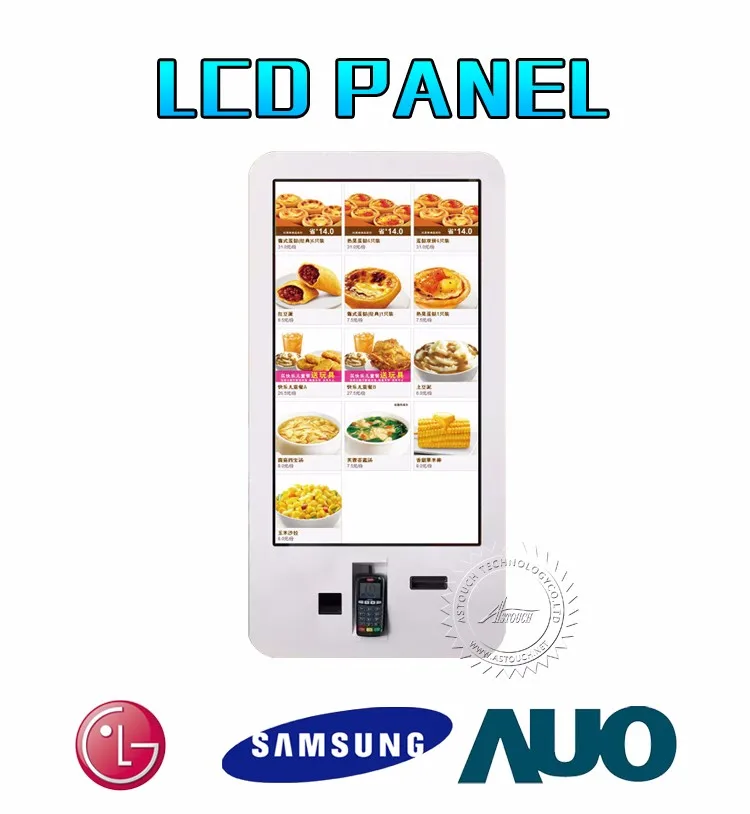

Panel Parameter
Panel Size
32inch
Active Area
909.6mm(W)×480.4mm(H)
Model
A32-FAD01
Max. Brightness
500nits
Max. Resolution
1,920*1,080p
Contrast Ratio
4,000:1
Panel Life
50,000 hours
Responsive Time
4ms
Viewing Angle
H178/V178


PC System
(Customizable)
Motherboard
Advantech/ Seavo/ Gigabyte
CPU
Dual core G2020, Four Core I3/ I5 /I7
RAM
2GB/4GB/8GB
HDD
320G/500G
Power Supply
Hunt Key/Great Wall





Touch Panel
Parameter (optional)
Interface
RS-232 Ports; LTP; USB Ports, 10/100M Net Port; Integrated Net Card, Sound Card
Screen Size
21.5” 24” 27” 32” 43” 55” 65”
Touch Max Resolution
4980*4980
Touch Type
IR touch/Projected Capacitive (PCAP) Touch
Touch point
10 points
Transparency
> 90%, Up to 100%
Scanning Speed
>50Scans/S
Response Speed
<12ms
Communication
RS-232 Interface Port, USB Port


Kiosk Cabinet
Material
Cold-rolled Steel ST12 SPCC with1.5mm thickness
Coating
Car painting technology
Feature
Easy service access through front and back
Color or Logo
Customizable
Parts
Multimedia speakers ,Internal ventilation system

Card Reader
Card Type
Magcard, IC Card, RF Card, Mifare Card, UL Card
Interface
RS232/USB
Card Entry Method
Signal of Magnetic, Optoelectronic and rear card

Encrypted Pin Pad
Key Life Span
2,000,000 cycles
Key Force
2-3N
Key Trip
>2.5mm
Protection Level
IP65

Bill Acceptor
Brand
Cash Code/ MEI/ ITL/ICT
Validation Rate
High than 96%
Capacity
600notes~1500notes



Thermal Printer
Brand
Epson/Custom/Citizen
Auto-cutter
Included
Width of Paper
50mm/80mm/112mm
Printing Speed
150mm/s
Buffer of Data
4Kb
Interface
RS232/USB
Operation System
Windows 2000/ Windows XP/ Windows 7/ Windows 8/ Linux
Power Supply
AC Input Voltage
100~240V/AC
Frequency
50Hz to 60Hz
Package
Safe packing with bubble foam, in wooden case with screws
Other Peripheral
A4 Printer, Coin acceptor, UPS, Wi-Fi, Web-camera, LAN port, USB port,
QR code reader and etc, can be added as required.
Certificate Approval
CE, RoHS, CCC, FCC, ISO9001
Warranty
One year
Packing & Delivery


To be packed in antistatic, each wrapped by foam bags, in carton

No matter which kinds of shipping way you choose, our 55 inch self ordering kiosk is in safety package!!

After-sales Service

All of our self ordering kiosk in restaurant with 12 months warranty;


Our each self ordering kiosk strictly completed the whole quality control process, including IQC→IPQC→FQC→OQC;

Certifications


  We passed the CE, FCC, ROHS certifications and so forth, which are shown as following:

Our Company

ASTOUCH Technology Co., Ltd. is the top 10 manufacture of digital signage, interactive touch kiosks, etc. in china, any OEM is available. We not only can do standardized product, but also have capable of producing custom products in-house. Wherever you would like your digital signage, we can design, manufacture and deliver it to fit in with your company or branding. With a choice of sizes, content and colors; we truly can provide different type of digital signage like no other.


We have been attended Euroshop, ISE, ISA, Media Expo, and so on exhibitions, our self ordering kiosk in restaurant sold around the world and applied in different countries public places, business organisations, entertainments, non-profit organisations, real estate property, financial organisations, which are shown as following:
